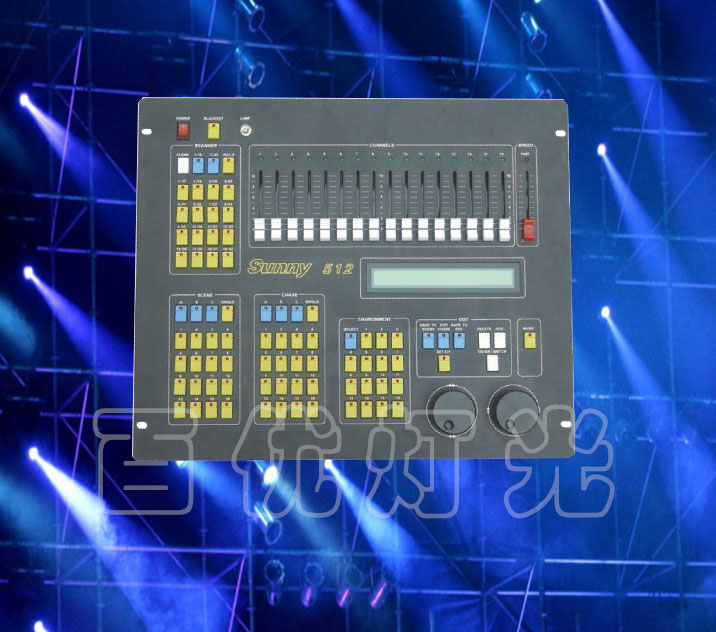

Model BY - K512
DMX512/1990 standard, 512 DMX control channel.
Two optical isolation independent drive signal output port. Can be
2000 VRMS electric shock resistance.
Independent board structure, easy to replace.
Can be controlled amount of 32 16 channels.
Big screen with a backlit LCD display operation parameters.
16 channel push rod, a speed control putter.
1600 light step program storage capacity. 48 lamp program,
Each program
100 steps. Each independent setting speed, gradient parameters. Can be
Choose music synchronization or manual rate control. Can be run at the same time
Four lights program, 48, and at the same time to 32
Amount for lamp operation.
Different amount of X/Y is united by shuttle wheel control.
15 environmental program, quick call different scenarios,
Go light, manual operation (lamp).
Music within the trigger signal source can be taken from the audio circuit input or
Microphones pick up. Maintain shutdown data.
Built-in high-performance green switching power supply, low power harmonic
With very wide wave distortion and electricity
Suitable pressure range so as to meet the requirements of power supply around the world.
High-grade imported durable key, special choose light function.
DMX signal output connector: XLR - D3Fx2.
Audio line input connector: 1/4 "mono socket.
Optional work 12 v gooseneck lamp.
Size: 590 x450x130mm
Net weight: 7.2 KG
