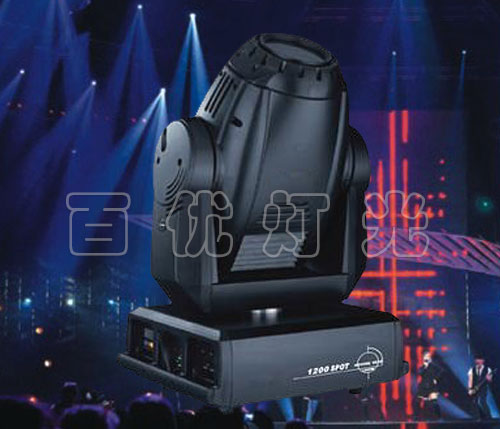

Model BY - M1200A
Technical parameters
Voltage: AC220-230 - v 50-60 hz (can be customized according to customer's requirement)
Bulb: HMI1200W/S short arc discharge bubble: the total power of 1500 w
Insurance: to be 20 a
Color temperature: 6500 k
The lamp holder, high temperature resistant plastic king
The dimension of lamps and lanterns: L500 * H760mm W410
Carton size: L620 * H900mm W605
Air box size: L610 * H910mm W480
49 kg net weight: the gross weight: 62 kg
The performance characteristics of
In compliance with CE standard and GB7000.15-2000 standard
16 control channel; Standard DMX512 signal.
LCD liquid crystal display system in English, can be very intuitive set personalized features.
A color plate, white + 7 color, one-way rainbow effect,
Speed is adjustable.
Fixed pattern plate 1 with pattern jitter,
One-way flow effect, the speed is adjustable.
One has design pattern plate rotating jitter, one-way
Water effect, the speed is adjustable. Pattern can be arbitrary replacement.
A prism plate Prism combination creature phantom effect,
Prism positive &negative free control, built-in macro effect.
0 ~ 100% linear mechanical dimmer, stroboscopic speed 1 ~ 12 times per second.
Electric light figure 5 ~ 100% linear adjustable beam size.
Electronic linear focusing 2 meters to infinite
Level 16 bit resolution 450 °, 270 ° vertically 16 bit resolution
Horizontal vertical light lotus root reset system, after the misoperation accident happen, can automatically retrieve place
Good heat dissipation system fully, and overheating protection measures
With photoelectric detection, light soaking time delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns
By external console or light devices end plate control window, edit the storage to the CPU in the body of the program,
No programming controller can also run or run a program, can store eight scenes.
Security code is set for the customer, can display light bulbs and lamps and lanterns use time
