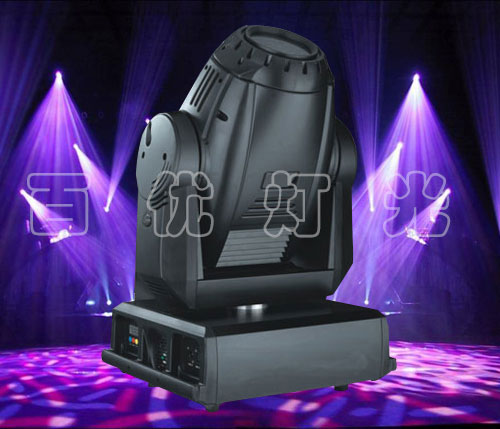

Model BY - M1200C
Technical parameters:
Voltage: AC220-230 - v 50-60 hz (can be customized according to customer's requirement)
Light source: HMI 1200 w/S short arc discharge
Power: 1500 w
Size of lamps and lanterns: H760MM W410 L500 * *
Carton size: H900MM W605 L620 * *
Air box size: W480 L610 * * H910MM
52 KGS net weight:
In compliance with CE standard and GB7000.15-2000 standard
The performance characteristics of
18 control channel, international standard DMX512 signal
LCD liquid crystal display system in English, can be very intuitive set personalized features
Color plate 2, white + 7 color, one-way rainbow effect
Fixed pattern plate of 1, has the pattern jitter, one-way flow effect
1, pattern plate rotating with pattern jitter, one-way flow effect
Prism prism plate 1, a variety of choices, the phantom effect of god
Effect 1, temperature (6000 k), temperature (3200 k), atomization, prism effect
0 ~ 100% linear mechanical dimmer, stroboscopic speed 1 ~ 12 times per second,
Built-in frequency ShanHong effect
Electric aperture of 5 ~ 100% linear calibration beam size.
14 ° ~ 24 ° linear beam Angle: the infinite adjustment
Electronic linear focusing 2 meters to infinite
Level 450 °, 270 ° vertically, 16 bit resolution 16 bit resolution
Horizontal, vertical, using light lotus root reset system, after the misoperation accident happen, can automatically retrieve place
Good heat dissipation system fully, and overheating protection measures
With photoelectric detection, light soaking time delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns
Through external console or light devices end plate control window, store editor to run the program to the CPU in the body,
Don't need to control table can also be run programming or run a program, can store eight scenes.
Security code is set for the customer, can display light bulbs and lamps and lanterns use time
